Offband Meshcore

Open-source Flutter client for MeshCore LoRa mesh networking devices.

Offband Meshcore is an independent fork of MeshCore Open by zjs81, used under the MIT License. Full credit to the original project — see Credits.

Overview

Offband Meshcore is a cross-platform mobile application for communicating with MeshCore LoRa mesh network devices via Bluetooth Low Energy (BLE). The app enables long-range, off-grid communication through peer-to-peer messaging, public channels, and mesh networking capabilities.

Screenshots

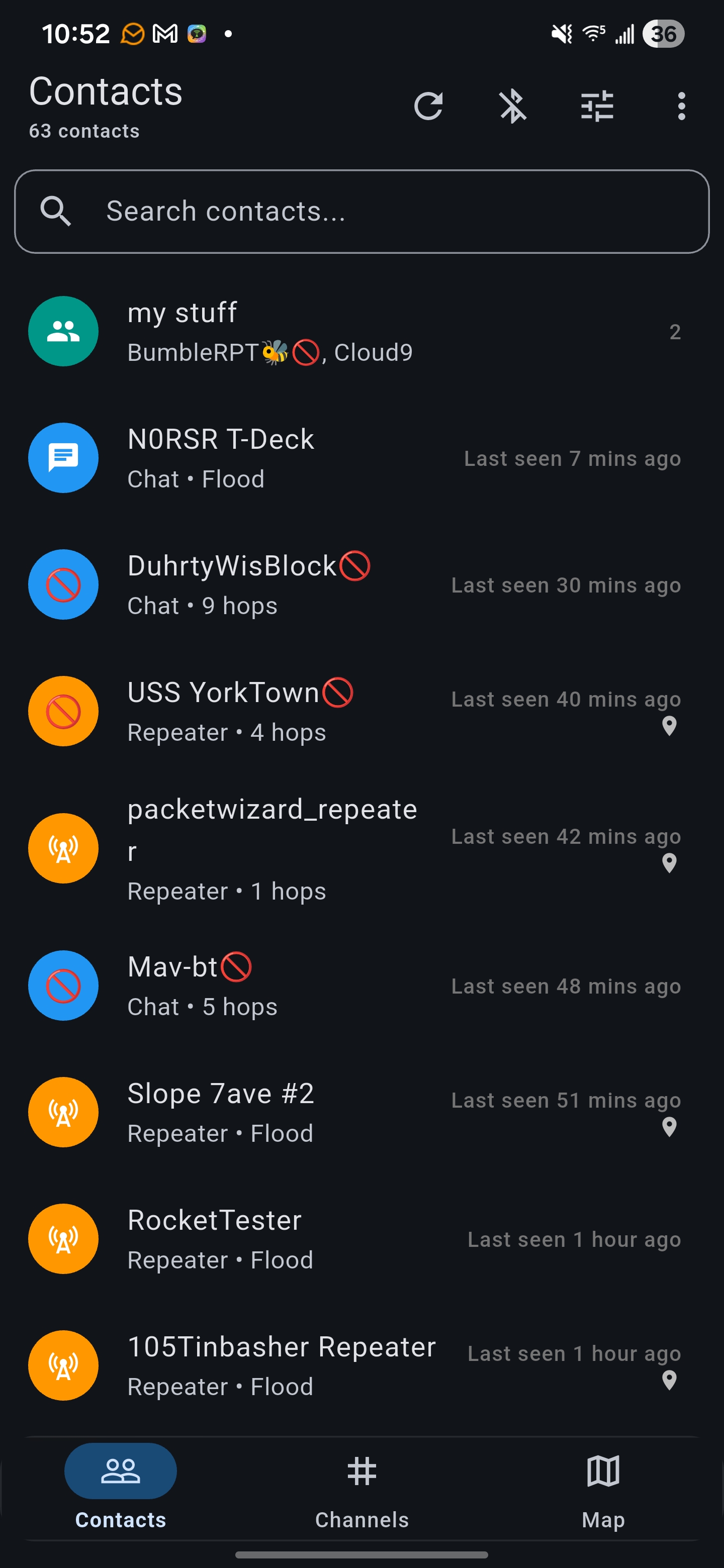

Contacts

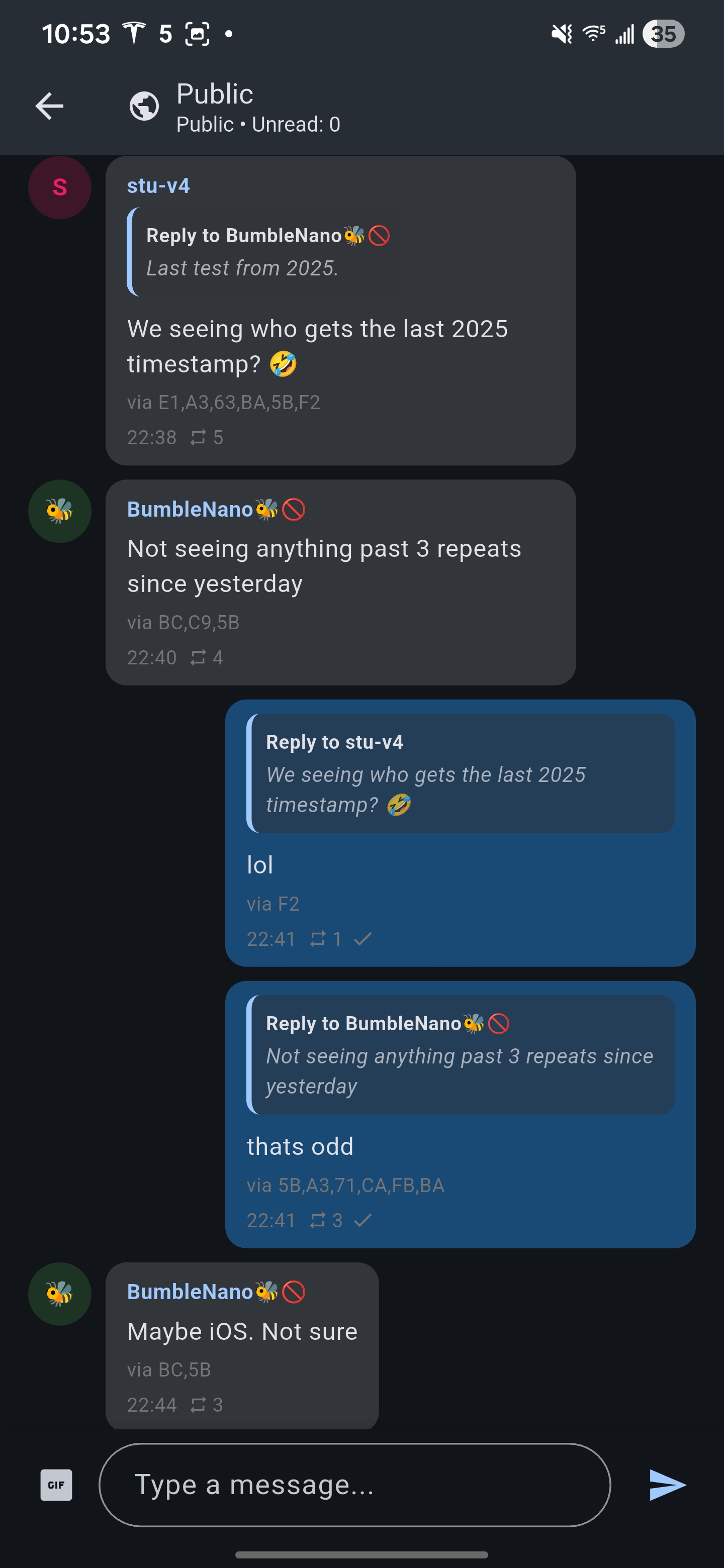

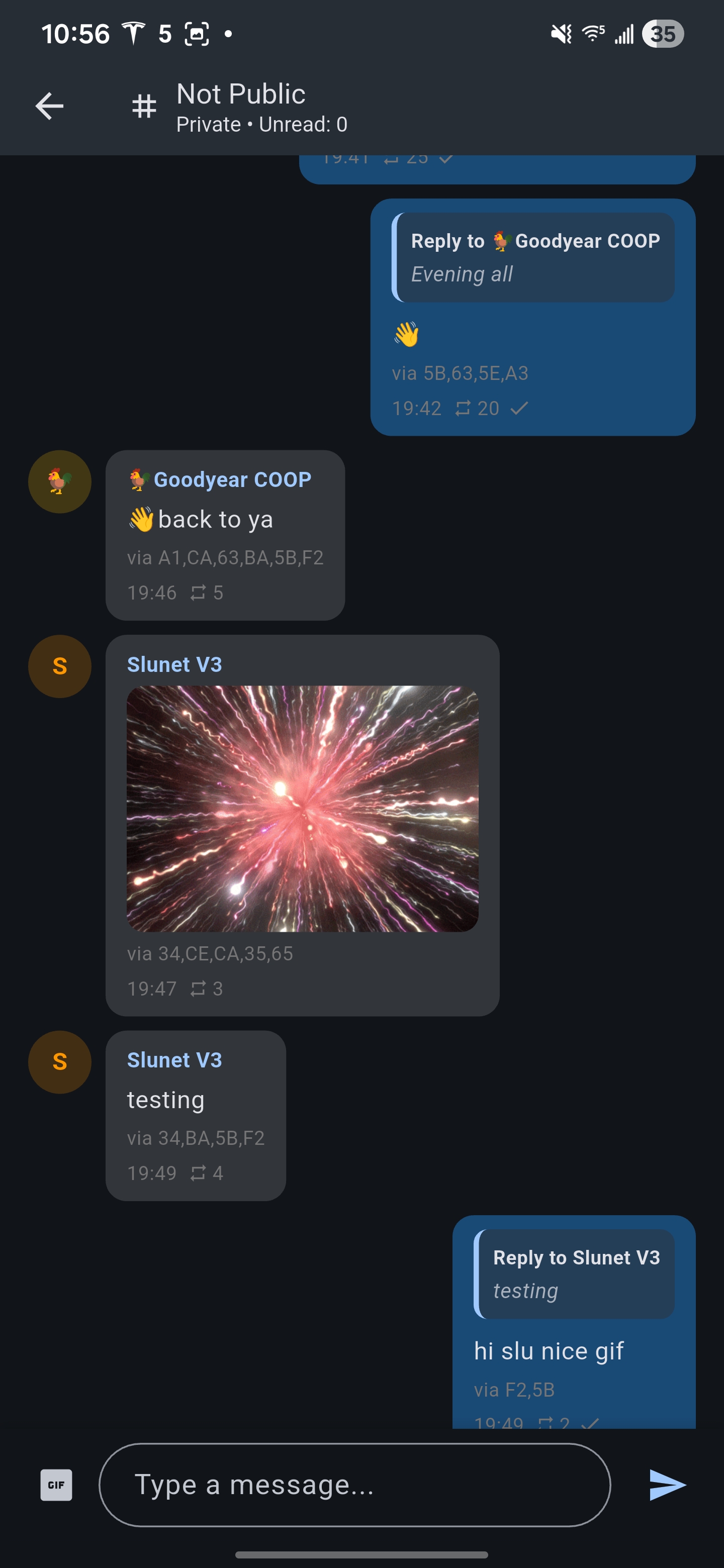

Chat

Reactions

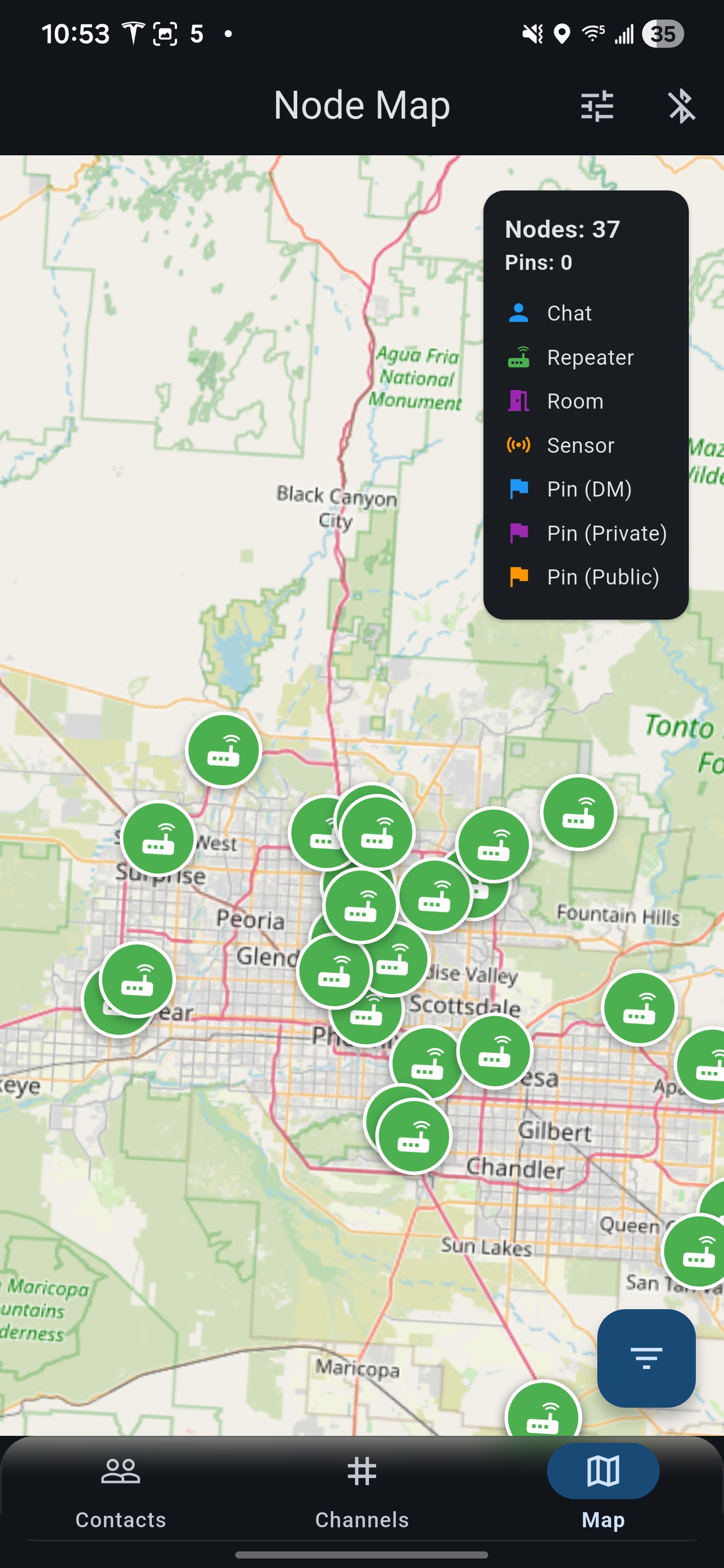

Map

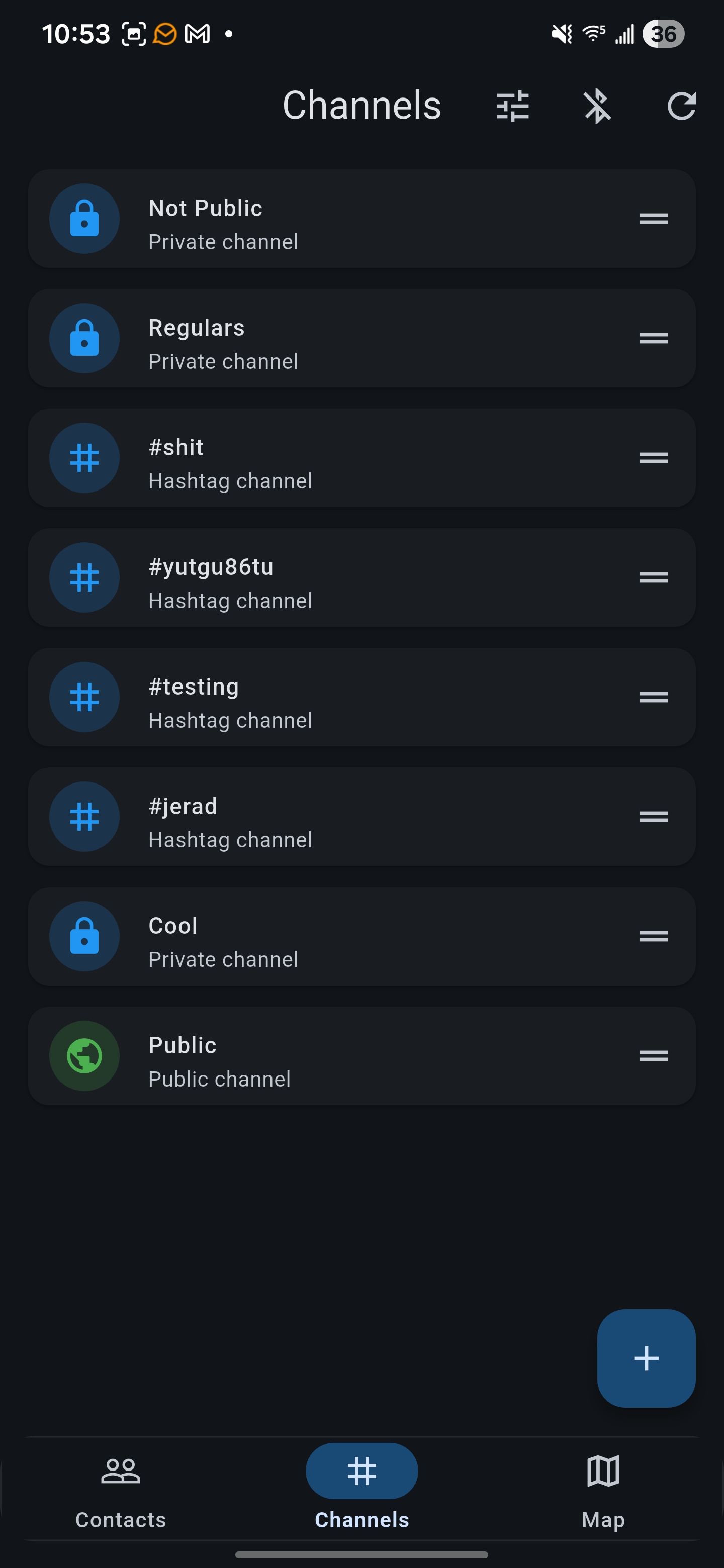

Channels

Download & Install

Release candidate — expect rough edges; please report bugs. Grab the newest build from Releases.

• Windows (x64): download OffbandMeshcore-*-win-x64.zip, extract it anywhere, and run offband_meshcore.exe. The build is unsigned, so Windows SmartScreen will warn — click More info → Run anyway.
• Android: download the .apk and install it (you may need to allow "install from unknown sources").
• iOS / macOS / Linux: build from source for now — see Getting Started.

Features

Core Functionality

• Direct Messaging: Private encrypted conversations with individual contacts
• Public Channels: Broadcast messages to channel subscribers on the mesh network
• Contact Management: Organize contacts, track last seen times, and manage conversation history
• Contact Groups: Create custom groups to organize your mesh network contacts
• Message Reactions: React to messages with emoji responses
• Message Replies: Thread conversations with inline reply functionality

Mesh Network

• Path Visualization: View routing paths and signal quality for each contact
• Route Management: Manual path overriding and automatic route rotation
• Signal Metrics: Real-time SNR (Signal-to-Noise Ratio) tracking
• Node Discovery: Automatic detection of nearby mesh nodes
• Repeater Support: Connect to and manage repeater nodes for extended range

Map & Location

• Live Map View: Real-time visualization of mesh network nodes on an interactive map
• Node Filtering: Filter by node type (chat, repeater, sensor) and time range
• Location Sharing: Share GPS coordinates and custom markers with contacts
• Offline Maps: Download map tiles for offline use in remote areas
• MGRS Coordinates: Support for Military Grid Reference System coordinate format

Device Management

• BLE, USB, TCP Connection: Scan and connect to MeshCore devices via Bluetooth, USB or TCP
• Device Settings: Configure radio parameters, power settings, and network options
• Battery Monitoring: Real-time battery status with chemistry-specific voltage curves
• Firmware Updates: Over-the-air firmware updates via BLE (coming soon)

Repeater Hub

• CLI Access: Full command-line interface to repeater nodes
• Settings Management: Configure repeater behavior, power limits, and network settings
• Statistics Dashboard: View repeater traffic, connected clients, and system health
• Remote Management: Administer repeaters from anywhere on the mesh network

Technical Details

Architecture

• Framework: Flutter 3.38.5 / Dart 3.10.4
• State Management: Provider pattern with ChangeNotifier
• BLE Protocol: Nordic UART Service (NUS) over Bluetooth Low Energy
• Storage: Local SQLite database for messages and contact data
• Encryption: End-to-end encryption for private messages using the MeshCore protocol

Platform Support

Feature	Android (API 21+)	iOS (12+)	Linux	Windows	macOS	Web
BLE companion	✅	✅	✅	✅	✅	✅
USB companion	✅	🚧	✅	✅	✅	✅
TCP companion	✅	🚧	✅	✅	✅	❌ (requires websocket bridge)
Core Functionality	✅	✅	✅	✅	✅	✅
Mesh Network	✅	✅	✅	✅	✅	✅
Map & Location	✅	✅	✅	✅	✅	✅
Device Management	✅	✅	✅	✅	✅	✅
Repeater Hub	✅	✅	✅	✅	✅	✅

Dependencies

Package	Purpose
flutter_blue_plus	Bluetooth Low Energy communication
provider	State management
sqflite	Local database storage
flutter_map	Interactive map display
latlong2	Geographic coordinate handling
flutter_local_notifications	Background notification support
smaz	Message compression
pointycastle	Cryptographic operations
intl	Internationalization and date formatting

Getting Started

Prerequisites

• Flutter SDK 3.38.5 or later
• Android Studio / Xcode (for mobile development)
• A MeshCore-compatible LoRa device

Installation

1. Clone the repository

   git clone https://github.com/OffbandMesh/meshcore-client.git
   cd meshcore-client


2. Install dependencies

   flutter pub get


3. Run the app

   flutter run


Building for Release

Android APK:

flutter build apk --release

iOS:

flutter build ios --release

Project Structure

lib/
├── main.dart                    # App entry point
├── connector/
│   ├── meshcore_connector.dart  # BLE communication & state management
│   ├── meshcore_protocol.dart   # Protocol definitions & frame parsing
│   └── meshcore_uuids.dart      # Device names and IDs (add prefixes here!)
├── screens/
│   ├── scanner_screen.dart      # Device scanning (home screen)
│   ├── contacts_screen.dart     # Contact list
│   ├── chat_screen.dart         # Direct messaging
│   ├── channels_screen.dart     # Public channels
│   ├── map_screen.dart          # Network visualization map
│   ├── settings_screen.dart     # Device settings
│   └── repeater_hub_screen.dart # Repeater management
├── models/
│   ├── contact.dart             # Contact data model
│   ├── message.dart             # Message data structure
│   └── channel.dart             # Channel definitions
├── services/
│   ├── notification_service.dart      # Push notifications
│   ├── message_retry_service.dart     # Automatic message retry
│   ├── background_service.dart        # Background BLE connection
│   └── map_tile_cache_service.dart    # Offline map storage
└── storage/
    ├── message_store.dart       # Message persistence
    ├── contact_store.dart       # Contact database
    └── unread_store.dart        # Unread message tracking

BLE Protocol

Nordic UART Service (NUS)

• Service UUID: 6e400001-b5a3-f393-e0a9-e50e24dcca9e
• RX Characteristic: 6e400002-b5a3-f393-e0a9-e50e24dcca9e (Write to device)
• TX Characteristic: 6e400003-b5a3-f393-e0a9-e50e24dcca9e (Notify from device)

Device Discovery

Devices are discovered by scanning for BLE advertisements with known MeshCore device name prefixes. These are currently: - MeshCore- - Whisper- - WisCore- - HT- - LowMesh_MC_ - NRF52

New device prefixes can be added in lib/connector/meshcore_uuids.dart.

Message Format

Messages are transmitted as binary frames using a custom protocol optimized for LoRa transmission. See meshcore_protocol.dart for frame structure definitions.

Configuration

App Settings

• Theme: System default, light, or dark mode
• Language: Use one of 15 languages (English, Chinese, French, Spanish, Portuguese, German, Dutch, Polish, Swedish, Italian, Slovak, Slovene, Bulgarian, Russian, Ukrainian)
• Notifications: Configurable for messages, channels, and node advertisements
• Battery Chemistry: Support for NMC, LiFePO4, and LiPo battery types
• Message Retry: Automatic retry with configurable path clearing

Device Settings

• Radio Power: Transmit power adjustment (10-30 dBm)
• Frequency: LoRa frequency configuration
• Bandwidth: Channel bandwidth selection
• Spreading Factor: Range vs. speed trade-off
• Network ID: Mesh network identifier

Contributing

This is an open-source project. Contributions are welcome!

Development Guidelines

• Follow the Flutter style guide
• Use Material 3 design components
• Write clear commit messages
• Test on both Android and iOS before submitting PRs

Code Style

• Prefer StatelessWidget with Consumer for reactive UI
• Use const constructors where possible
• Keep functions small and focused
• Avoid premature abstractions
• Run dart format on all changes before submitting

Support

For issues, questions, or feature requests, please open an issue on GitHub: https://github.com/OffbandMesh/meshcore-client/issues

Credits

Offband Meshcore is an independent fork of MeshCore Open by zjs81, used under the MIT License. The original copyright and license are retained in LICENSE. Deep thanks to zjs81 and the upstream contributors.

• Built with Flutter
• Map tiles from OpenStreetMap
